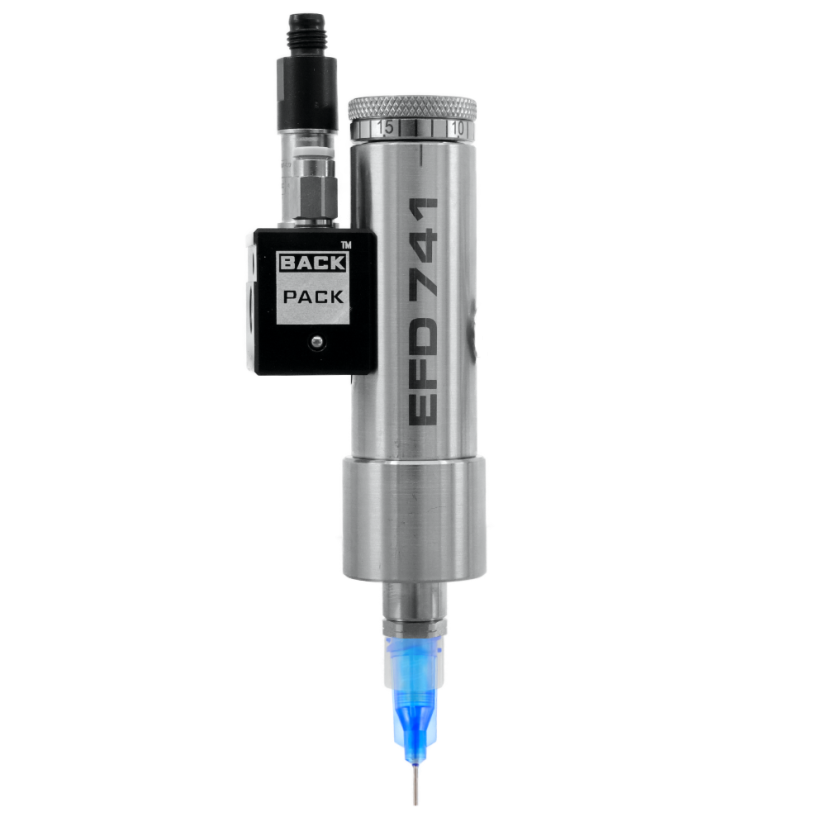

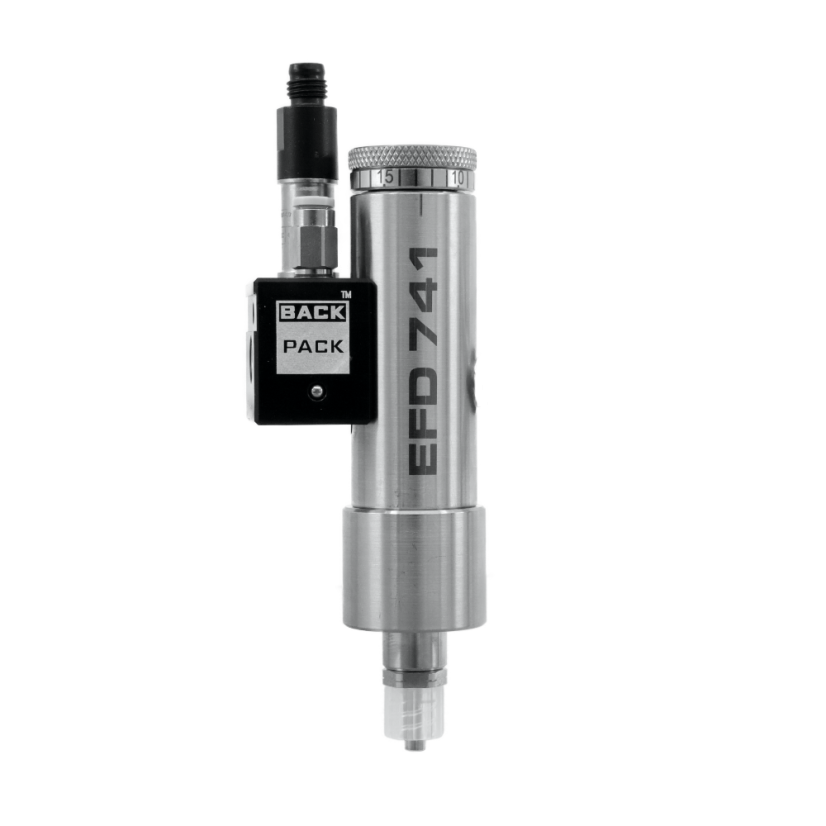

741V-SS-BP ADJUSTABLE NEEDLE VALVE w. BACKPACK

Product code: 7015584

741v series needle valve with backpack™ actuator

The 741V Series needle valve applies low-viscosity fluids, such as silicone oils, solvents, and UV-cure adhesives, in precise and repeatable amounts.

• Stainless steel needle shuts off fluid flow directly in the tip adapter.
• Virtually zero fluid waste between dispensing cycles.
• BackPack™ technology ensures ultra-fast and consistent response times.
• Ideal for high-speed applications requiring constant actuation pressure.
• Minimizes maintenance through durable seals and precision engineering. More

1K/2K	Single Component
Type	Needle
Series	741
Wetted material	Stainles Steel 303

Features and Benefits

High cycle rate (60–80 Hz) enables smaller deposit sizes and continuous line dispensing.
BackPack™ actuator features state-of-the-art solenoid technology with 5–6 ms response.
Minimizes variation for higher shot-to-shot repeatability and consistency.
Low-profile, lightweight design for easy installation on end-of-arm robotic systems.

Technical Specifications

Parameter	Value
Power Input (BackPack)	24 VDC, 4 W
Actuation Time	5 – 6 ms
Maximum Fluid Pressure	20.7 bar (300 psi)
Weight (Total)	370.1 g (13.5 oz)
Fluid Body & Needle Material	Type 303 Stainless Steel
Needle Packings	Teflon®
Fluid Outlet	Luer lock
